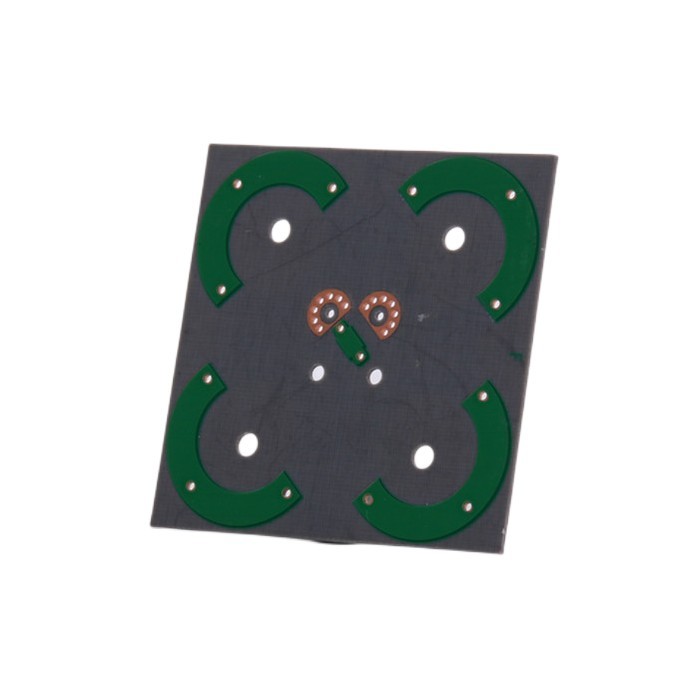

Description
Number of floors 2,
board thickness 0.65 ± 0.1mm
Dielectric Thickness 0.508,
Plate used Rogers 3006
Dielectric constant:6.15
Dielectric loss factor 0.0015
Minimum hole diameter 0.2mm,
TD 500,
Thermal conductivity 0.79w/w.k ,
density 2.6gm/cm3
Process characteristics high-frequency materials, Rogers 3006
The application scenarios of Rogers 3006 PCB in high-speed circuits include but are not limited to the following fields:
- Communication equipment: Such as 5G communication base stations, satellite communication systems, etc.
- Computer hardware: High-speed servers, routers, etc.
- Automotive electronics: Automotive radar systems, etc.
- Aerospace: Airborne and ground radar systems, etc.
- Medical equipment: Such as MRI, CT and other medical imaging equipment.
Rogers 3006 PCB has the characteristics of low dielectric constant and low loss factor, which can provide good signal transmission performance at high frequencies and reduce signal attenuation and distortion. At the same time, it also has high thermal conductivity, which helps to dissipate heat and improve the stability and reliability of the circuit. In these high-speed circuit applications, Rogers 3006 PCB can help achieve higher-speed data transmission, more accurate signal processing and more reliable system operation.
