Description

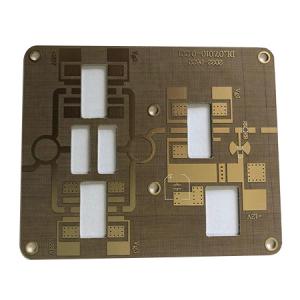

Rogers pcb
Number of floors: 6
Plate thickness: 2.0 ± 0.14mm
Plate used: rogers4350b+FR4
Dielectric constant: 3.48 ± 0.05
Dielectric loss factor: 0.0037
Minimum hole diameter: 0.3mm
Surface treatment:immersion gold
Minimum trace width/distance: 0.18mm/0.2mm
Process characteristics: high-frequency materials, rogers4350b+FR4 Shengyi mixed lamination
Rogers PCB uses a special amide resin material. Compared with PCB of other brands, it has certain advantages in dielectric properties, thermal stability, and mechanical strength. The specific introduction is as follows:
- Dielectric characteristics: Using a special amide resin material, it has stable dielectric constant, loss factor, leakage current and other parameters, and performs excellently in high-precision and high-speed circuit designs.
- Thermal stability: It has a low coefficient of thermal expansion (CTE), and can maintain stability in high-temperature and high-humidity environments to avoid circuit failure problems caused by temperature changes.
- Mechanical strength: The material is hard and can withstand large mechanical loads to ensure the reliable operation of the circuit.
When choosing a PCB, in addition to considering the brand and material, it is also necessary to comprehensively evaluate according to the specific application requirements and budget. If you need more detailed information, you can consult the PCB manufacturer or relevant professionals.
